Configuring Connections: Micro Focus Vertica

Versions: 8.0+

Learn how to create QuerySurge Connections to Micro Focus Vertica databases.

Configuring QuerySurge Connections: Micro Focus Vertica

When you create a QuerySurge Connection, the Connection Wizard will guide you through the process. Different types of QuerySurge connections require different types of information.

For a Connection to Micro Focus Vertica, you will need the following information (check with a DBA or other knowledgeable resource in your organization):

·         Database login credentials (ID and Password)

·         Server Name or IP address of the Vertica Server (e.g. myvertica.company.com, or 192.168.0.255)

·         The Port for your database (5433 is the default port)

·         The Vertica Database name

Launch the Connection Wizard

1.    Log into QuerySurge as an Admin user.

2.    To configure a Connection, select Configuration > Connection in the Administrative View tree (at the left).

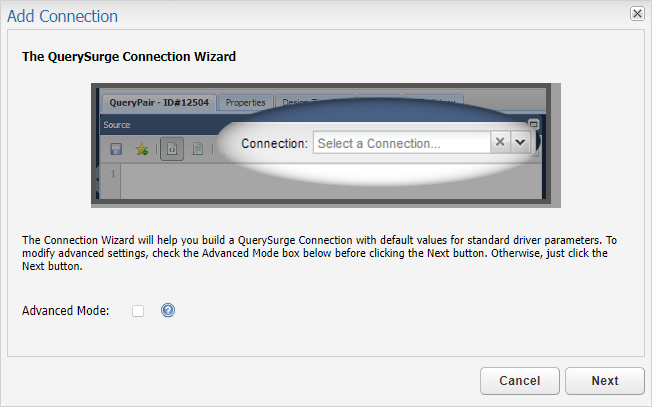

3.    Click on the Add button at the bottom left of the page to launch the Connection Wizard. Click Next.

Note: Check the Advanced Mode checkbox for access to advanced features.

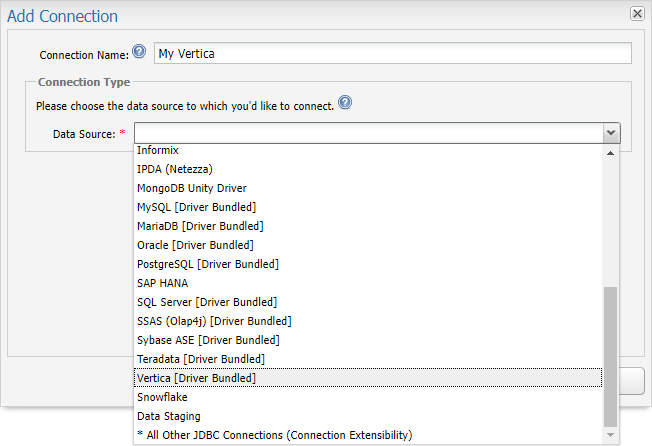

4.    Provide a name for your connection. Select Vertica as the Data Source. Click Next.

Note: The Vertica JDBC driver is bundled with QuerySurge, so you can install it when you install your QuerySurge Agent(s). If you want to deploy the Vertica JDBC driver manually, see Adding a JDBC Driver to your QuerySurge Agent for instructions.

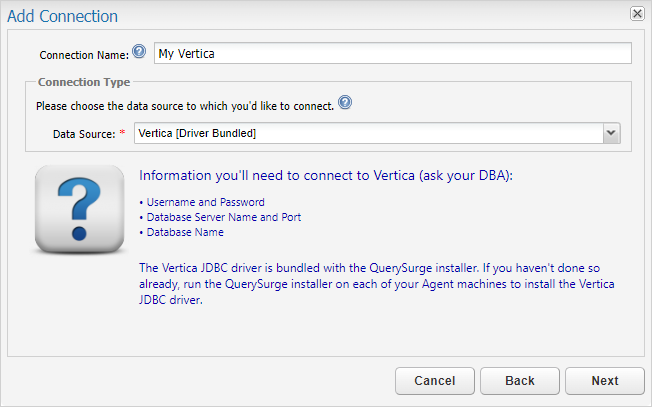

5.    Once you have selected your Data Source, the Wizard will tell you what information you are likely to need in order to create your Connection. Once you have collected this information, you are ready to click Next.

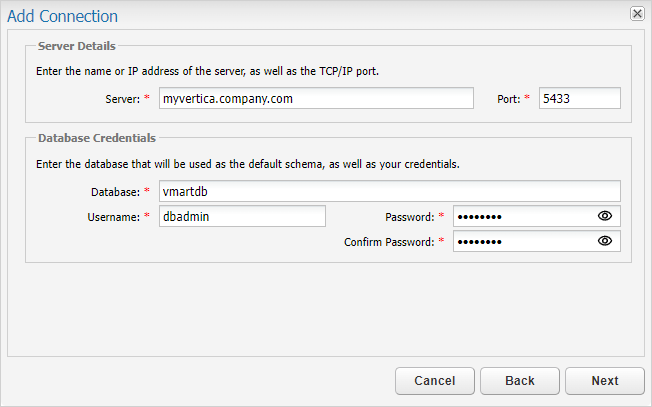

6.    Provide the connection information to your database. This includes the Server name or IP address, the port (the default port for your database product will automatically populate), the Database name and login credentials. Click Next.

Required fields for your Connection Type are marked by an *.

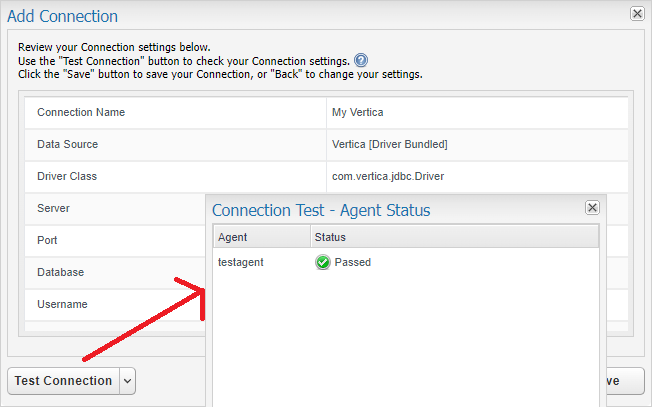

7.     Click on Test Connection.



Note: You must have an Agent running with the driver for this Connection deployed in order to test the Connection.

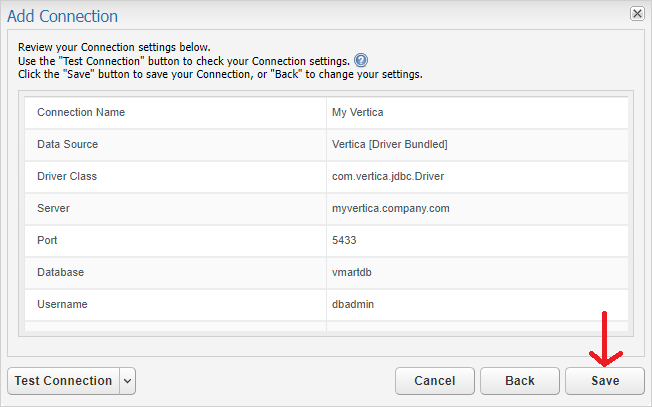

8.    Save the Connection.

9.    Congratulations! You’ve created a QuerySurge Connection. Again, make sure that you have deployed the driver for this connection to all your QuerySurge Agents (see #4 above).
